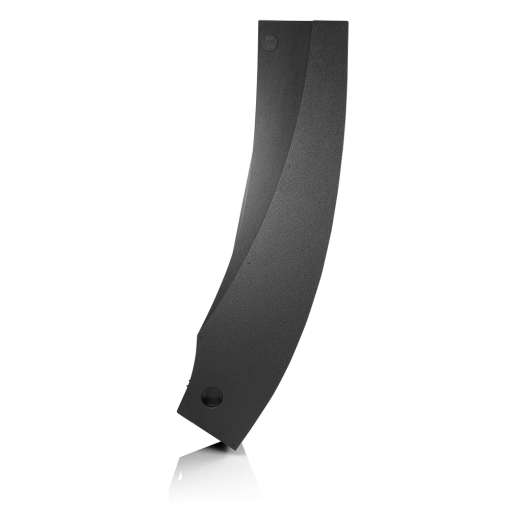

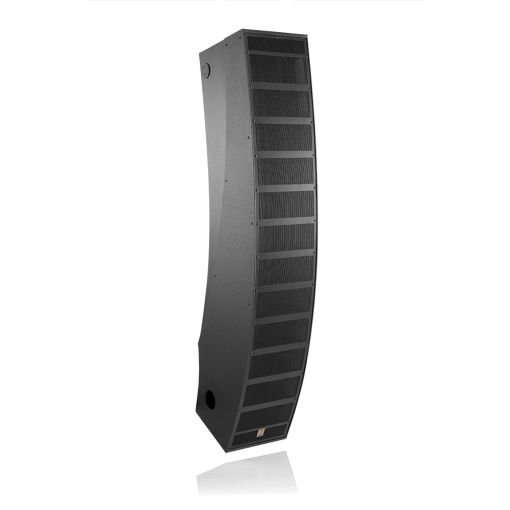

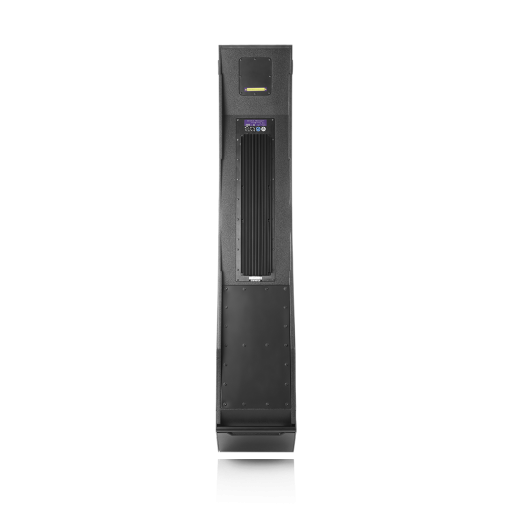

Like the Dreamline, the Bassline is a slender 2,2 meter high line-array assembly, weighing only 110 kg including the pragmatic Angle Adapter™ rigging hardware. This conveniently allows single point suspension at almost any theatre batten lift Horizontal aiming in steps of 5 degrees allow optimal audience coverage.
The Bassline is a valuable supplement for or demanding and otherwise loud events. Flying one or two Basslines next to a Dreamline results in far better controlled low-mid beaming, with far less room reflection and a powerful “punch” often missed in other flying bass.
Acoustical specifications | |
---|---|
Drivers | 6 x 12” High power, high efficiency ND magnets |
Freq. Reponse | 60Hz-250Hz |
Max. peak SPL @ 1m |
144dB
Peak level at 1M under half space conditions using pink noise with crest factor 4 (12dB) |
Coverage angle | Omni (Horizontal) 120Âş ~ 180Âş curvilinear (Vertical) |
Electrical specifications |
|
Amplifier(s) | CCD™ technology |
Output |
3x 2500W sine LF (DALC limited)
Specified at 4Ω |
Filter hipass | 60Hz, 4th order |
Low pass 4th order |
~250Hz
Depending on combination of Dreamline version and venue |
Input impedance | 20 kOhms balanced, 10 kOhms unbalanced |
Output impedance | Hard-wired to input |
Main voltage | 230V (other on request) |
Mains frequency | 50 / 60 Hz |
Idle | < 50VA |
Full load | < 3000VA. DALC limited Ref. to continuous pink noise signal (12 dB crest factor within the specified range) |
Protection | D.A.L.C. (Dual Audio Logic Control) |
Additional descriptive data |
|
Cabinet construction | Cross grain laminated multiplex |
Finish | Nano-armor™ coating |
Weight (in kg) | 110 |
Width (in mm) | 415 |
Height (in mm) | 2205 |
Depth (in mm) | 840 |
Rigging points | Integrated single liftpoint levelbar, angle adapter with trussclamp (optional) |
Audio connectors | IEC XLR-3 in/out |
Main connectors | Powercon in, powercon out |
Max operating temp. | -10 to 40 C ambient |
